DL 2 and 4 Column Goods-Lift

This two or four column hydraulic lifting system is certified for the transport of goods and/or with one attendant on board. It is available in a range of capacities from 3,000kgs up to  5,000kgs.

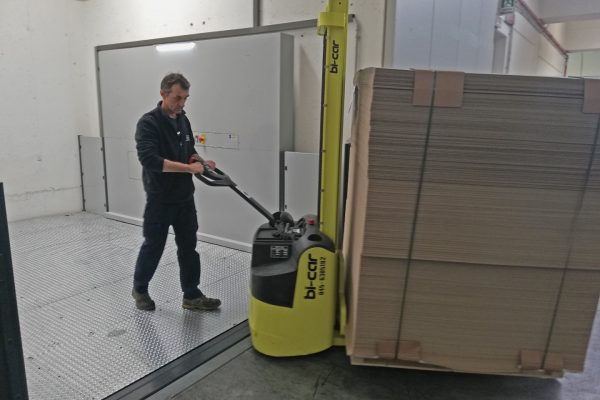

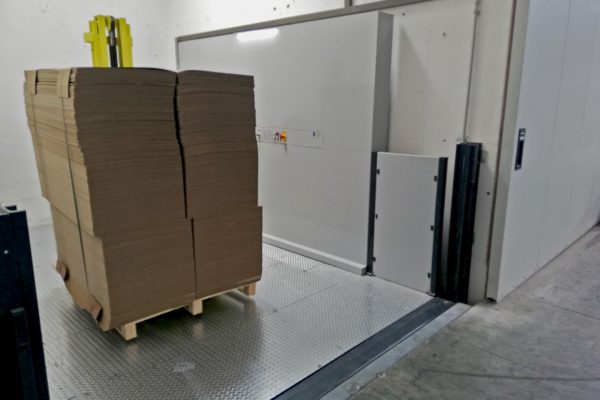

DL – Goods only

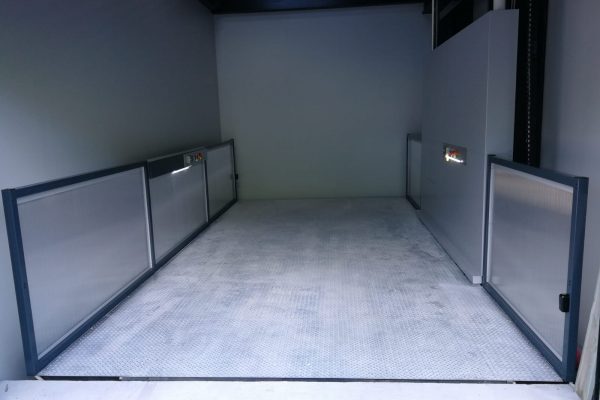

The loading surface is optimised for use with goods only, and is suitable for connecting multiple levels. This model can carry capacities of up to 5,000kg or even higher.

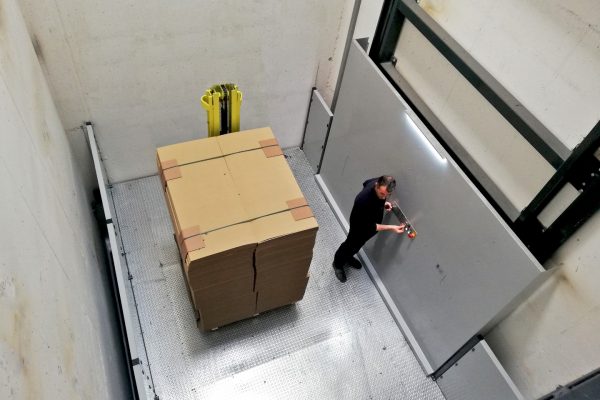

DL SPB – With operator on board

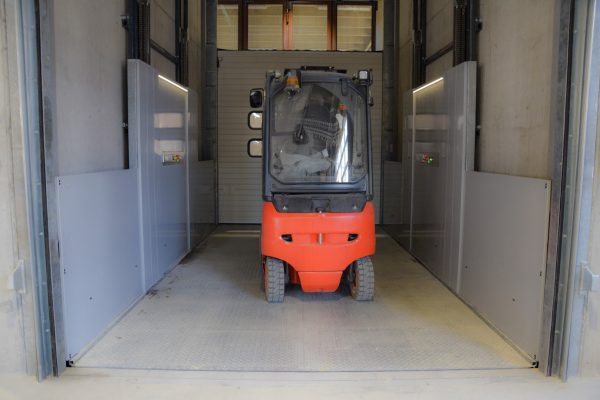

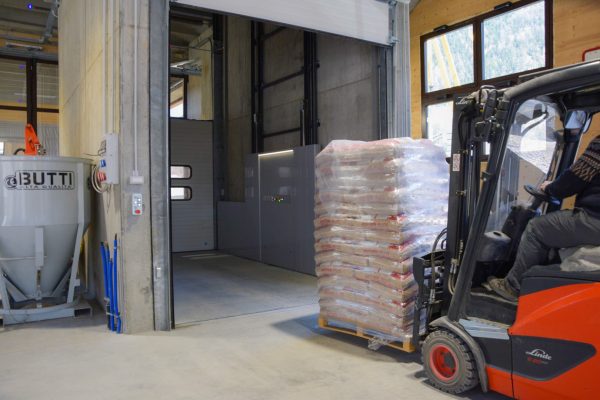

This model allows an attendant to operate the system on board in complete safety. What’s more, the extremely robust platform is suitable for transporting a forklift accompanied by the operator.

DL UP and UP SPB
DL Goods-Lift Capacity Options

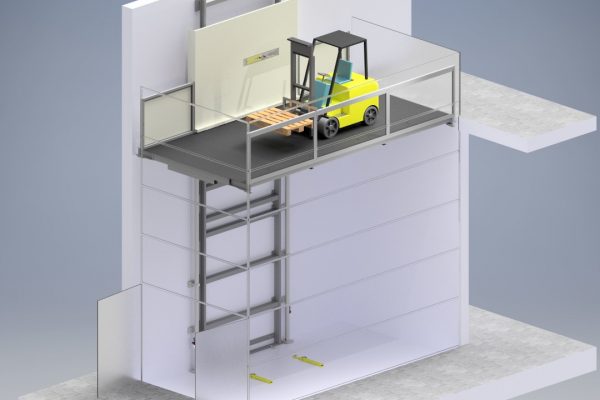

DL 2 SMART TWO-COLUMN FREIGHT ELEVATOR UP TO 3000 KG

CAPACITY: 3000 KG
MAX TRAVEL DISTANCE: 16 M
FLOOR DEPTH: 2500 MM
FLATBED WIDTH: 5200 MM
PIT: 250 MM
MINIMUM HEADER: 2400 MM
MAX STOPS: 5
POWER SUPPLY: THREE-PHASE
MOTOR: 5.5 KW

Post short description

DL 2 TWO-COLUMN HOIST UP TO 4000 KG

CAPACITY: 3000/4000 KG
MAX TRAVEL DISTANCE: 16 M
FLOOR DEPTH: 3000/2500 MM
FLATBED WIDTH: 6000/4500 MM
PIT: 300 MM
MINIMUM HEADER: 2400 MM
MAX STOPS: 5
POWER SUPPLY: THREE-PHASE
MOTOR: 5.5 KW

Post short description

DL 4 FOUR-COLUMN LIFTS UP TO 5000 KG

CAPACITY: 4000/5000 KG
MAN-ON-BOARD CERTIFIED UP TO 4000 KG
MAX TRAVEL DISTANCE: 16 M
FLOOR DEPTH: 3000 MM
FLATBED WIDTH: 6000 MM
PIT: 1150 MM
MINIMUM HEADER: 2200 MM
MAX STOPS: 5
POWER SUPPLY: THREE-PHASE
MOTOR: 5.5 KW

Post short description

I want more details!

If you would like more information on the DL Goods-lifts feel free to email us at info@hlsequipment.com

Alternatively, please complete the contact form and we will send you a brochure!
