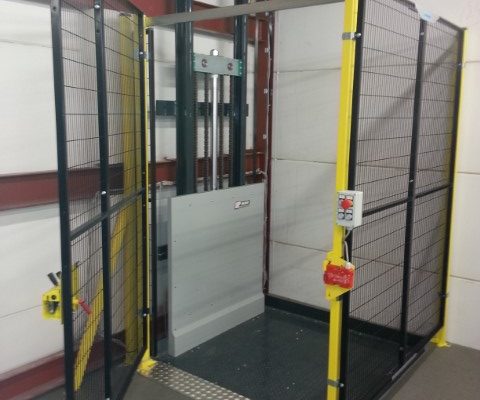

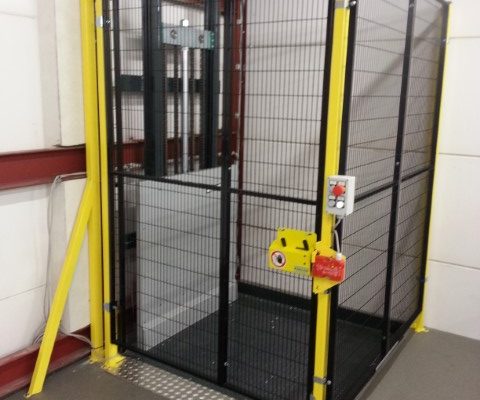

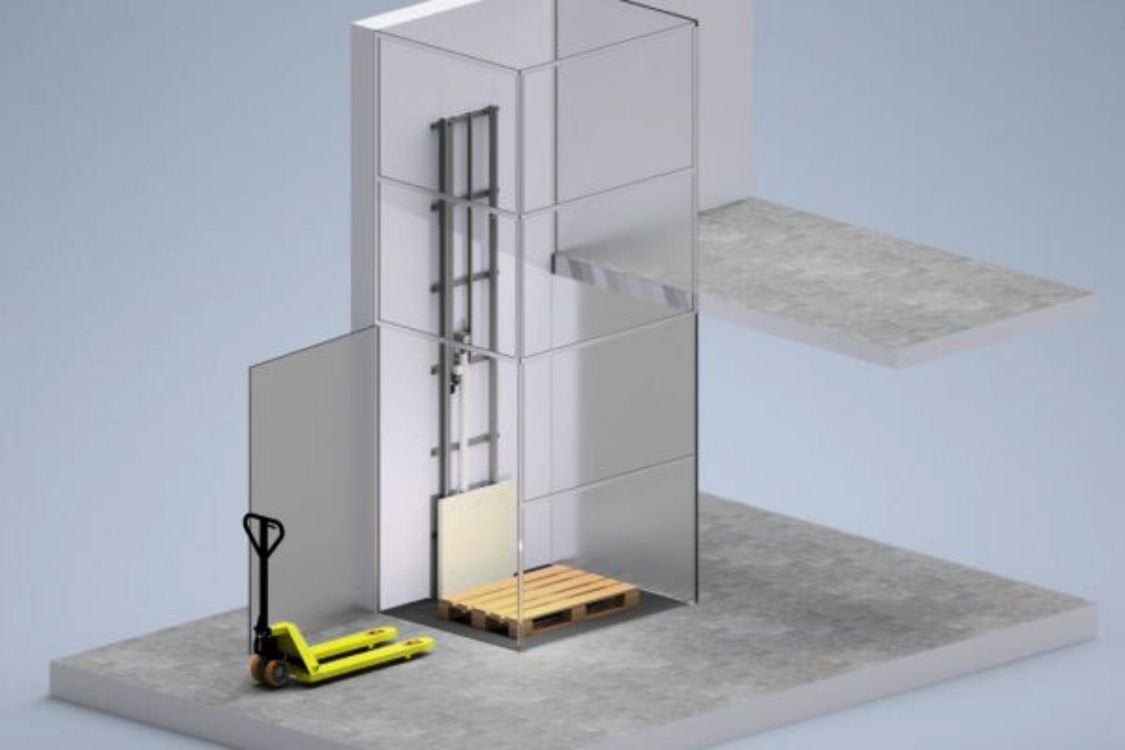

This single column hydraulic lifting system is certified for the transport of goods and/or with one person-on-board. It is available in a range of capacities from 300kgs up to 2,500kgs. With a variety of customizations available, it's perfect for almost any application.

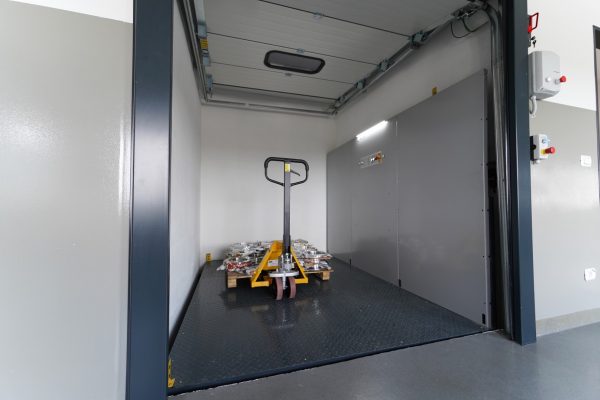

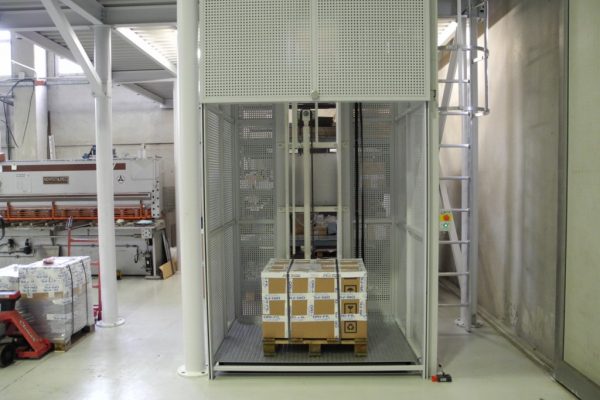

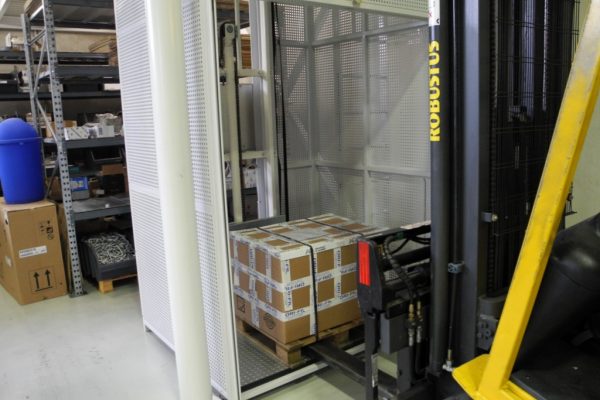

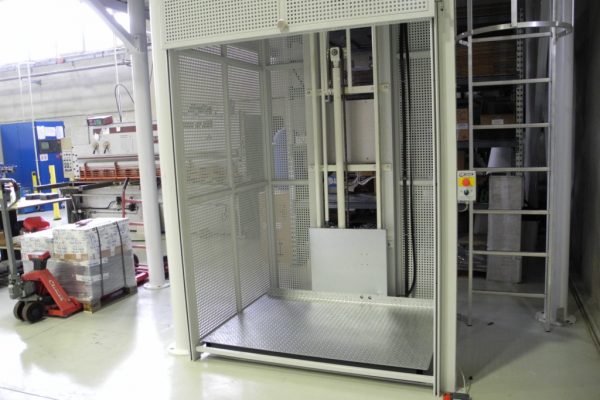

UP – Goods only
The loading surface is optimised for use with goods only, and is suitable for connecting multiple levels. This model is suitable for use in automated industrial plants.

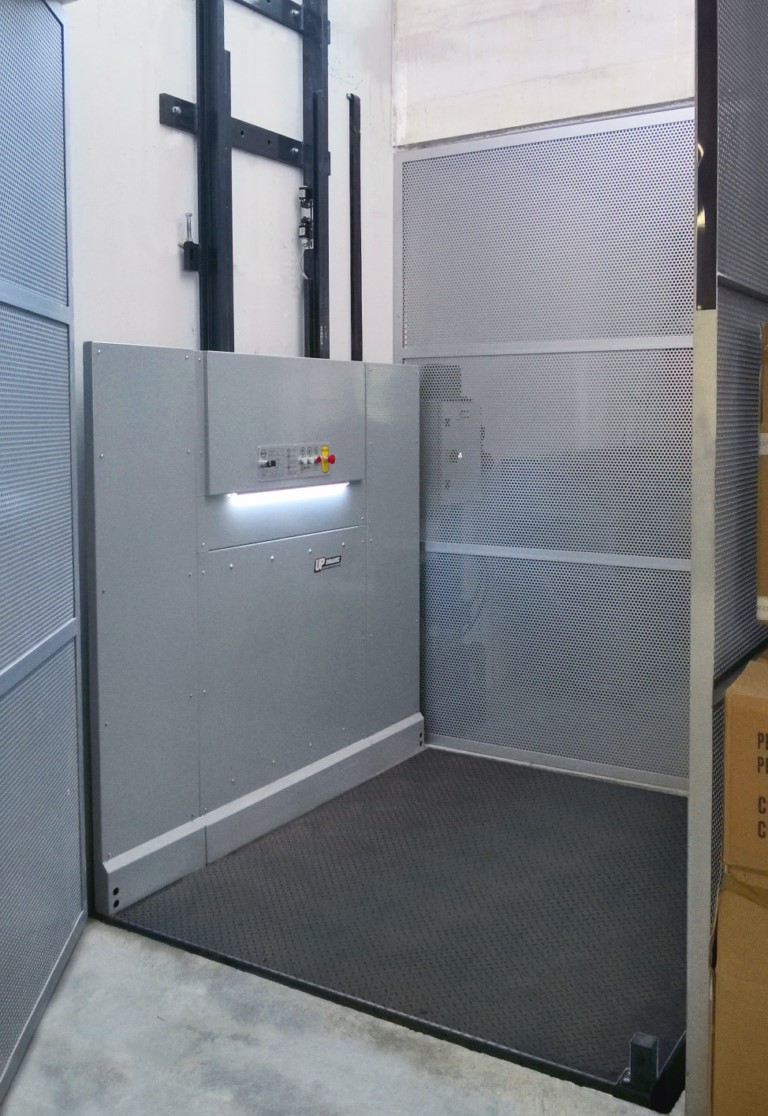

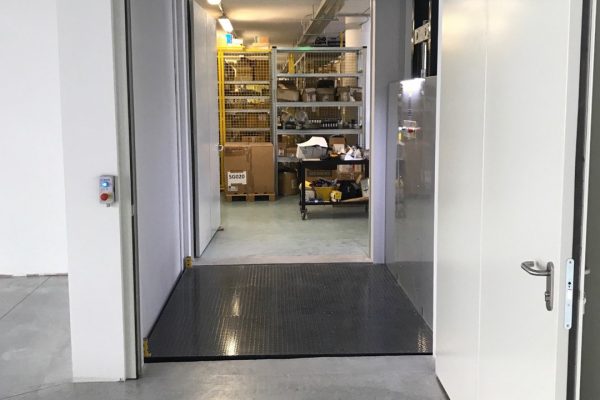

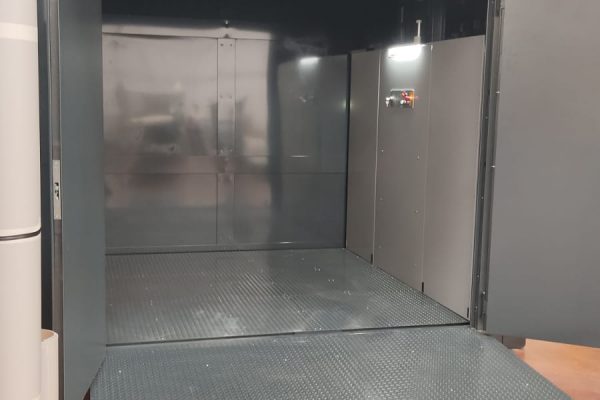

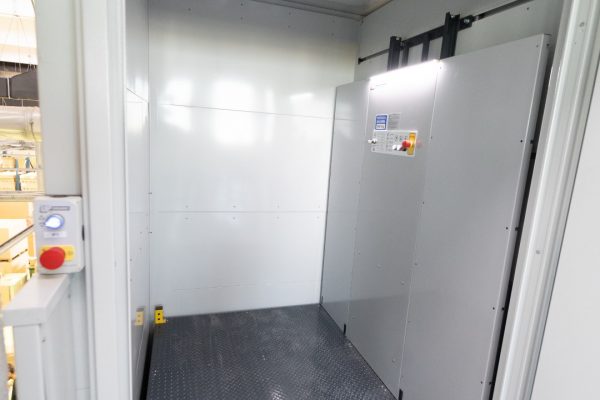

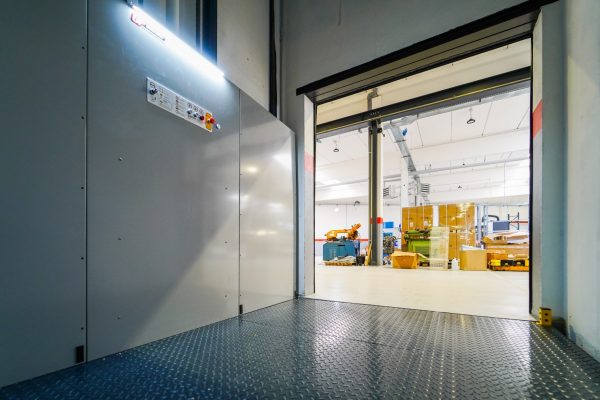

UP SPB – With Operator-on-Board
This model allows a person-on-board to operate the system in complete safety. It offers improved usability and work capacity with reduced material loading & unloading times.
UP and UP SPB Goods-Lift Capacity Options
UP3 SINGLE-MAST GOODS-LIFT 300 KGS
CAPACITY: 300 KG MAX TRAVEL DISTANCE: 7 M FLOOR DEPTH: 1300 MM FLATBED WIDTH: 1700 MM PIT: 120 MM MINIMUM HEADER: 2150 MM MAX STOPS: 5 POWER SUPPLY: SINGLE-PHASE MOTOR: 1.5 KW
Post short description
UP6 SINGLE-MAST GOODS-LIFT 600 KGS
CAPACITY: 600 KG MAX TRAVEL DISTANCE: 7 M FLOOR DEPTH: 1300 MM FLATBED WIDTH: 1700 MM PIT: 120 MM MINIMUM HEADER: 2150 MM MAX STOPS: 5 POWER SUPPLY: SINGLE-PHASE MOTOR: 2.2 KW
Post short description
UP10 SINGLE-MAST GOODS-LIFT 1000 KGS
CAPACITY: 1000 KG MAX TRAVEL DISTANCE: 16 M FLOOR DEPTH :2000/2500 MM FLATBED WIDTH: 2800 /2500 MM PIT: 150 MM MINIMUM HEADER: 2150 MM MAX STOPS: 5 POWER SUPPLY: THREE-PHASE MOTOR: 3 KW
Post short description
UP15 SINGLE-MAST GOODS-LIFT 1500 KGS
CAPACITY: 1500 KG MAX TRAVEL DISTANCE: 16 M FLOOR DEPTH: 1700/1900 MM FLATBED WIDTH: 2500/1900 MM PIT: 150 MM MINIMUM HEADER: 2150 MM MAX STOPS: 5 POWER SUPPLY: THREE-PHASE MOTOR: 4 KW
Post short description
UP20 SINGLE-MAST GOODS-LIFT 2000 KGS
CAPACITY: 2000 KG MAX TRAVEL DISTANCE: 16 M FLOOR DEPTH: 2000/2400 MM FLATBED WIDTH: 2800/2400 MM PIT: 250 MM MINIMUM HEADER: 2150 MM MAX STOPS: 5 POWER SUPPLY: THREE-PHASE MOTOR: 4 KW
Post short description
UP25 SINGLE-MAST GOODS-LIFT 2500 KGS
CAPACITY: 2500 KG MAX TRAVEL DISTANCE: 16 M FLOOR DEPTH: 1700/1900 MM FLATBED WIDTH: 2500/1900 MM PIT: 250 MM MINIMUM HEADER: 2150 MM MAX STOPS 5 POWER SUPPLY: THREE-PHASE MOTOR: 5.5 KW
Post short description
